Micro stepper motor controller PMC006x3-NEMA 14/17





       Description

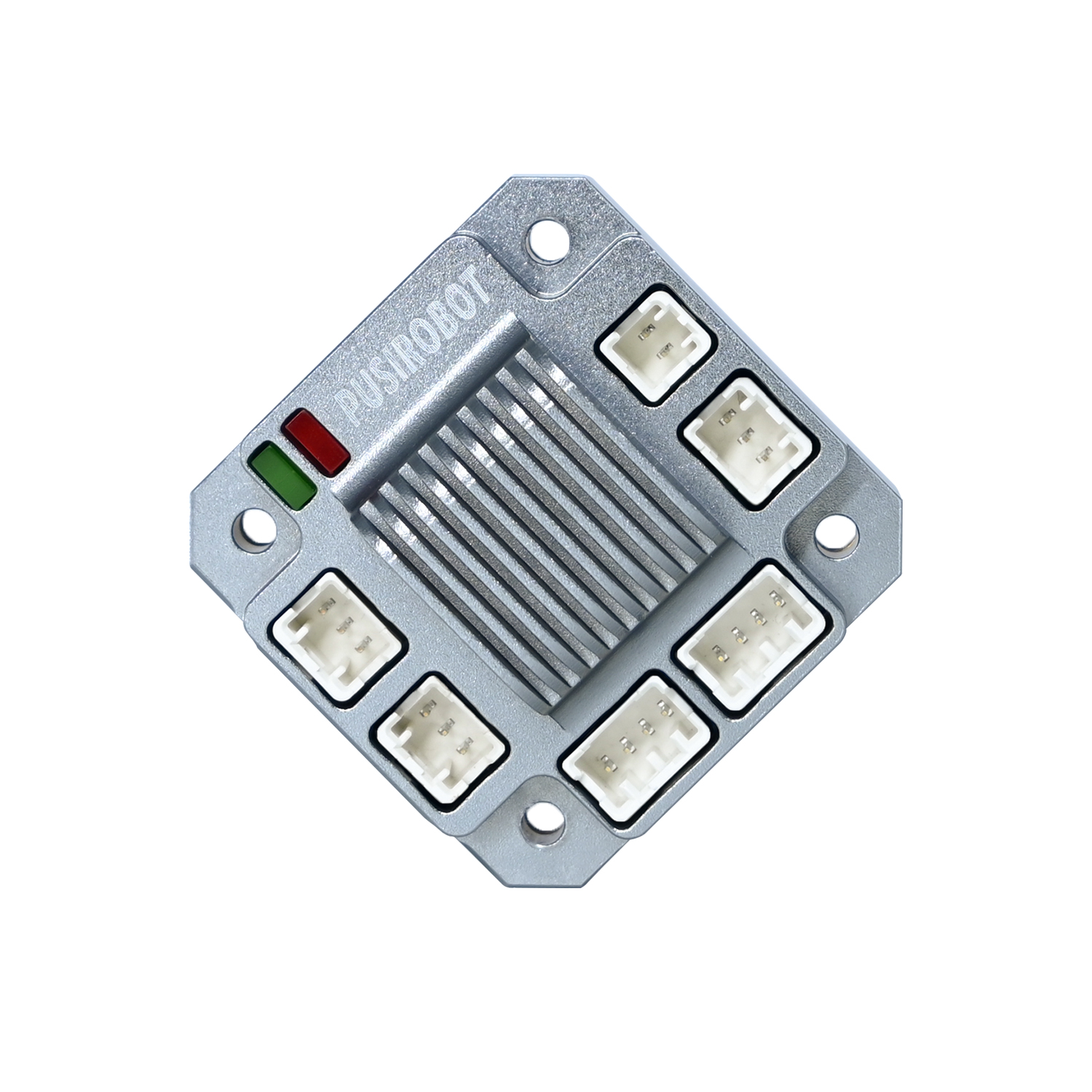

The PMC006x3 is a miniature all-in-one stepper motor controller that can be mounted directly on the back cover of NEMA 14/17 series stepper motors. PMC006x3 provides a simple and rich set of control commands, which not only greatly simplifies the complexity of the upper control system, but also retains the flexibility of control to the greatest extent, and is suitable for a variety of high-precision and wide-range industrial applications. With added hot-plug protection and reverse power protection, it can effectively prevent some emergencies during testing and actual use.

       Technical data

        General
PMC006x3 bus series
Host
PC,PLC,MCU
Support motor
2-phase 4-wire 1.8°/0.9° stepper motor
The development environment
VC C# Labviwe VB Linux Python
The power supply voltage
DC 9-36V
Output Current

DC 0.2-3A

Microstepping
0/2/4/8/16/32/64/128 adjustable
Temperature
-40℃~80℃
Incremental resolution
Suppport external 200-8000PPR
Absolute resolution
12/14 bit single-turn/multi-turn absolute encoder
Durability
Over 20,000 hours
Weight
39g

        The input
General I/O
Description
IO function
External stop input, brake control, digital input/output, analog input, factory reset, 5V output, digital ground
The input specifications
Digital input voltage: 0-5V
Analog input voltage: 0-3.3V (0-5V/0-10V/0-24V/4-20mA input in special versions)
External limit input voltage: 5V
Number of common ports: 1

        Control mode

Description
Control mode
Position mode, speed mode, PV mode, PP mode, high-speed high torque mode, analog speed control/positioning, synchronous positioning mode.
Mode switching
Specified instruction switching

        Communication
Description
Protocol
CANopen DS301 / MODbus-RTU
Baud rate
 5K-1M bps/9600-115200 bps adjustable

            Dimension

        Download
CAD
.DWG
3D file
.STP(Contact customer service)
The user manual
Debug software
Development documentation
Certification
CE

        Selection guide

       Functional features
Function
Description
S-curve acceleration and deceleration automatic control
Support separate configuration of starting speed, stopping speed, acceleration and deceleration. Acceleration and deceleration support 8-gear control. Acceleration and deceleration simulation diagram is as follows


Multi-axis motion control
Maximum retention control precision
