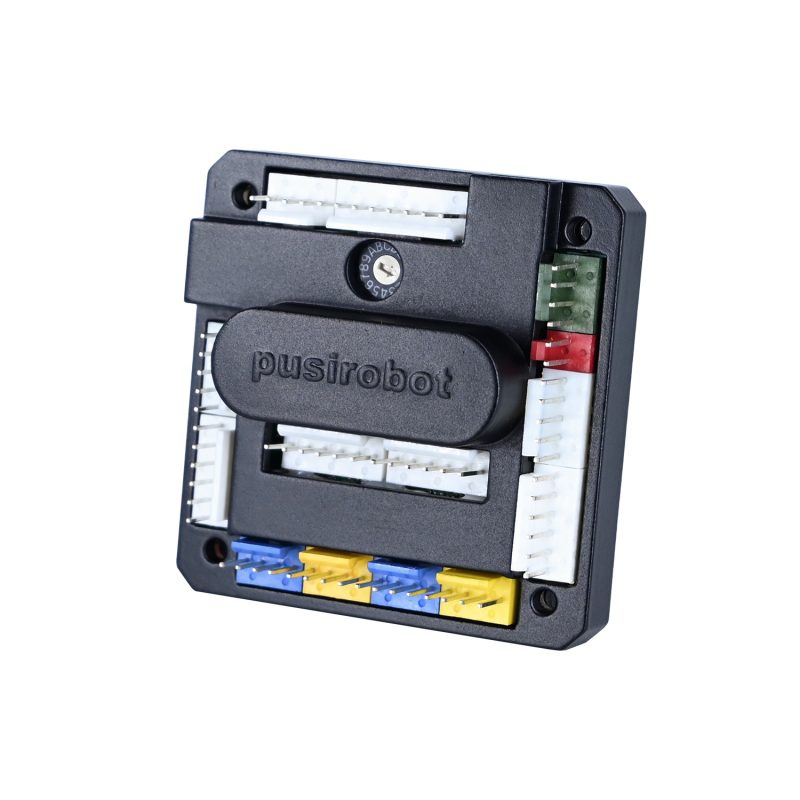

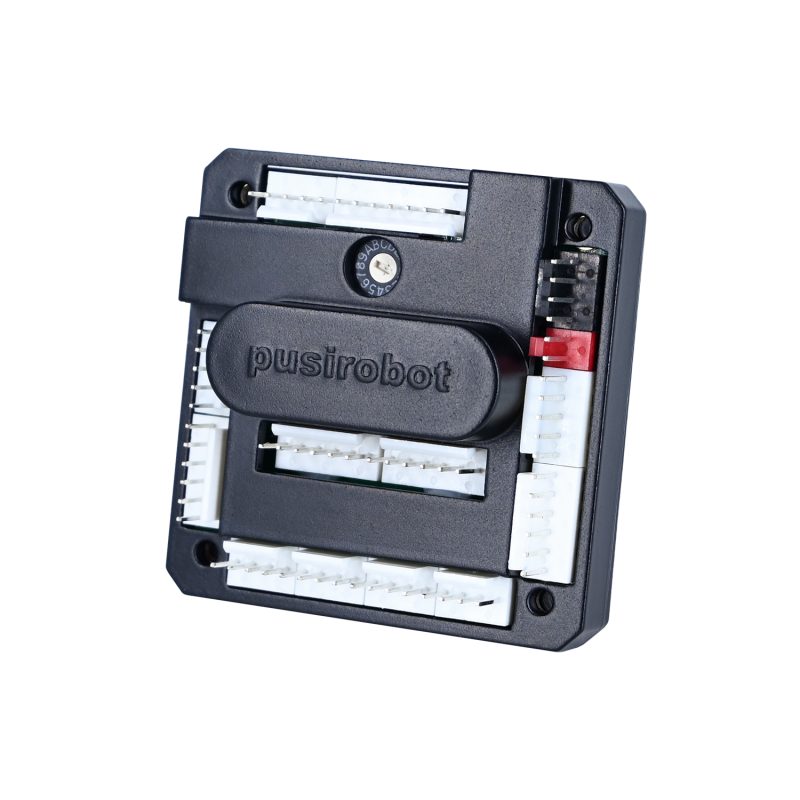

Micro Modbus Five-axis stepper motor controller PMC005Bx
$92.00 – $99.00
Features:
> DC 12A, 0.1-4A/axis
> 128 microstepping
> 57 *57 *23.7 mm
> Support 4(stepper motors) +2(DC brush motors /solenoid valves) at the same time
> Controlled by USB or RS485
Micro Modbus Five-axis stepper motor controller PMC005Bx
Description
PMC005xx was designed to allow the rapid implementation of multi axis stepper motor solutions, which can be controlled by USB interface or RS485 network. PMC005xx stepping motor controller can provide parallel control of five-axis stepping motor, 0.1 ~ 4A/axis continuously adjustable, at maximum 128 microstepping, with built-in acceleration and deceleration, and sensor control. It is especially suitable for compact multi-axis automation instruments and equipment.
Technical data
General
|
Multi-axis Stepping Motor Driver Series
|
|
| Host |
PC PLC MCU
|
| Supporting motor |
five axis 2-phase stepper motor
|
| Development environment |
VC C# Labviwe VB Linux Python
|
| The power supply voltage |
DC9-36V
|
| Output Current |
DC 12A, 0.1-4A/axis
|
| Microstepping |
0/128adjustable
|
| Temp.Range |
-40℃~80℃
|
| Maximum pulse frequency |
200K
|
| Durability |
Over 20,000 hours
|
Closed-loop control |
Optional support for two-axis closed-loop control (incremental 200-4000CPR optional)
|
The input
| General I/O |
Multi-axis Stepping Motor Driver Series
|
| I/O function |
Emergency stop input, digital input/output, analog input, 5V output, external encoder
|
| The input specifications |
Digital input voltage：0-5V
Analog speed regulation input voltage：0-3.3V Emergency stop input voltage：0-5V |
communication
|
Multi-axis Stepping Motor Driver Series
|
|
| Protocol |
RS485 or MicroUSB
|
| Baud rate |
9.6K-57.6Kbps
|
Dimension
Five-axis stepping motor controller
Download
| CAD |
Five-axis stepping motor controller.DWG
|
| The 3D file |
Five-axis stepping motor controller.STP
|
| The user manual | |
| Debug software | |
| Driver | |
| Certificate |
selection guide
Functional features
| Function |
Description
|
| Multi-Axis |
Maximum five axis stepper motor parallel control, or four axis stepper motor + two axis dc brush control
|
| Multiple 485 bus network control |
Maximum 16 sets of network control, communication distance up to 1200 meters
|
| Standardized command structure |

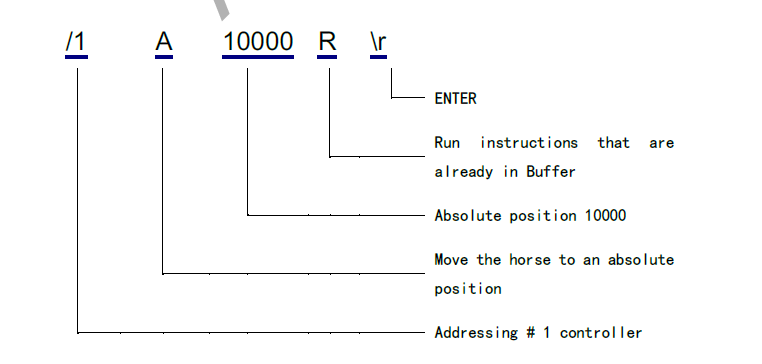

Using the string-based DT communication protocol, it consists of an Alpha character representing the command followed by a numeric value representing the parameter value
|
| Weight | 0.07 kg |
|---|---|
| Dimensions | 5.715 × 5.715 × 2.37 cm |
| Controller model | PMC005B3, PMC005B4 |
