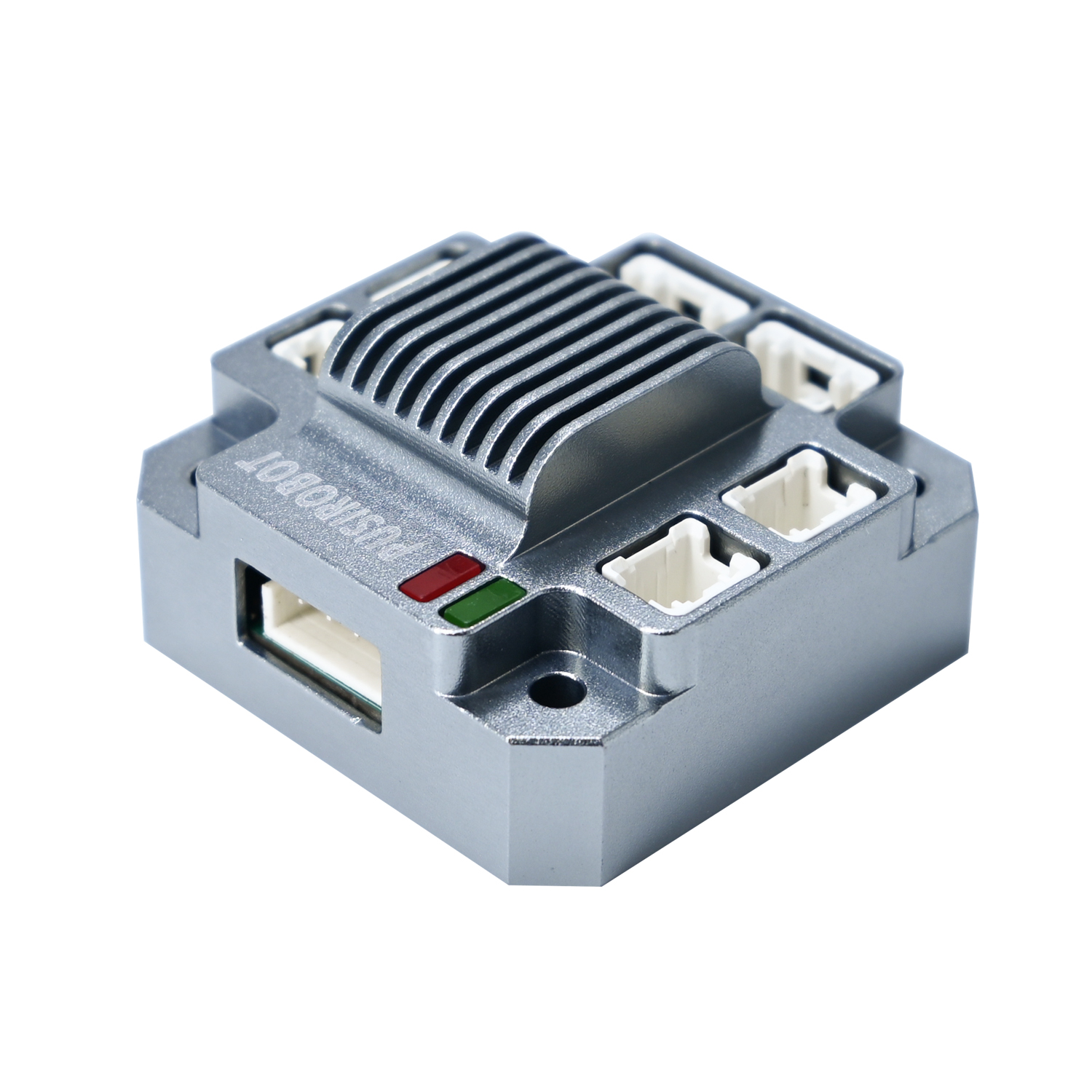

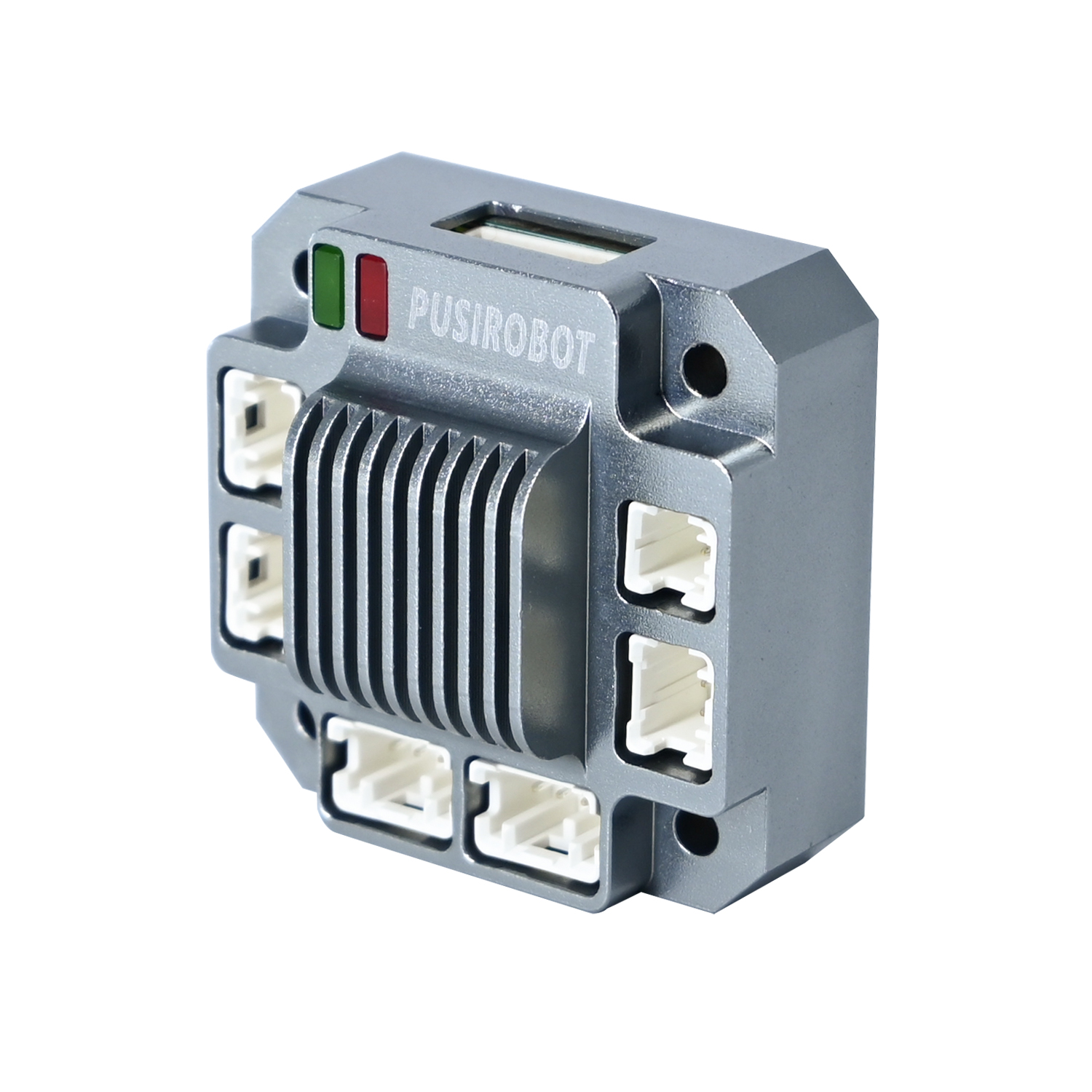

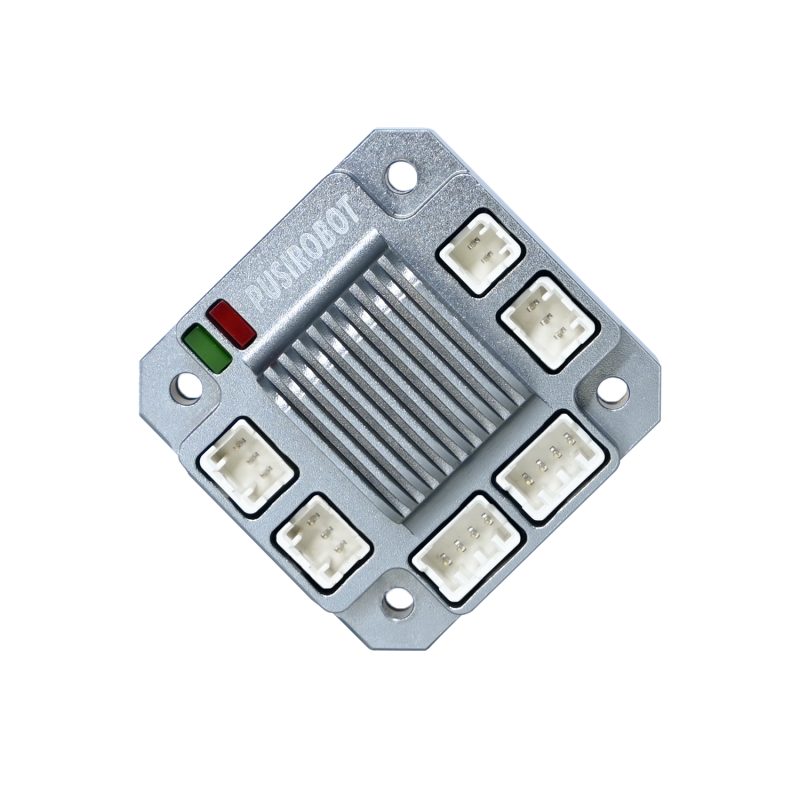

Micro stepper motor controller PMC006x3s-NEMA 11/17/23
$64.00
The PMC006x3 is a miniature all-in-one stepper motor controller that can be mounted directly on the back cover of NEMA 11/17/23 series stepper motors, with added protection, incorrect wiring does not damage the controller. PMC006x3 provides a simple and rich set of control commands, which not only greatly simplifies the complexity of the upper control system, but also retains the flexibility of control to the greatest extent, and is suitable for a variety of high-precision and wide-range industrial applications.
Available on backorder
Micro stepper motor controller PMC006x3s-NEMA 11/17/23
Technical data
General
|
PMC006x3 bus series
|
|
| Host |
PC,PLC,MCU
|
| Support motor |
4/6/8 line two-phase stepper motor
|
| The development environment |
VC C# Labviwe VB Linux Python
|
| The power supply voltage |
DC 9-36V
|
| Output Current |
DC 0.2-3A |
| Microstepping |
0/128 adjustable
|
| Temperature |
-40℃~80℃
|
| Maximum pulse frequency |
16K
|
| Durability |
Over 20,000 hours
|
Weight |
39g
|
The input
| General I/O |
Description
|
| IO function |
Emergency stop input, brake control, digital input/output, analog input, factory reset, 5V output
|
| The input specifications |
Digital input voltage: 0-5V
Analog speed regulation input voltage: 0-3.3V (0-24V (or 10mA) input in special versions) External limit input voltage: 3-5.5V Number of common ports: 3 |
Control mode
|
|
Description
|
| Control mode |
Position mode, speed mode, PV mode, PP mode, PVT mode, analog speed regulation, analog positioning, synchronous positioning, low-speed mute, etc
|
| Mode switching |
Specified instruction switching
|
Communication
|
Description
|
|
| Protocol |
RS485/RS232
|
| Baud rate |
9.6K-115.2K bps adjustable
|

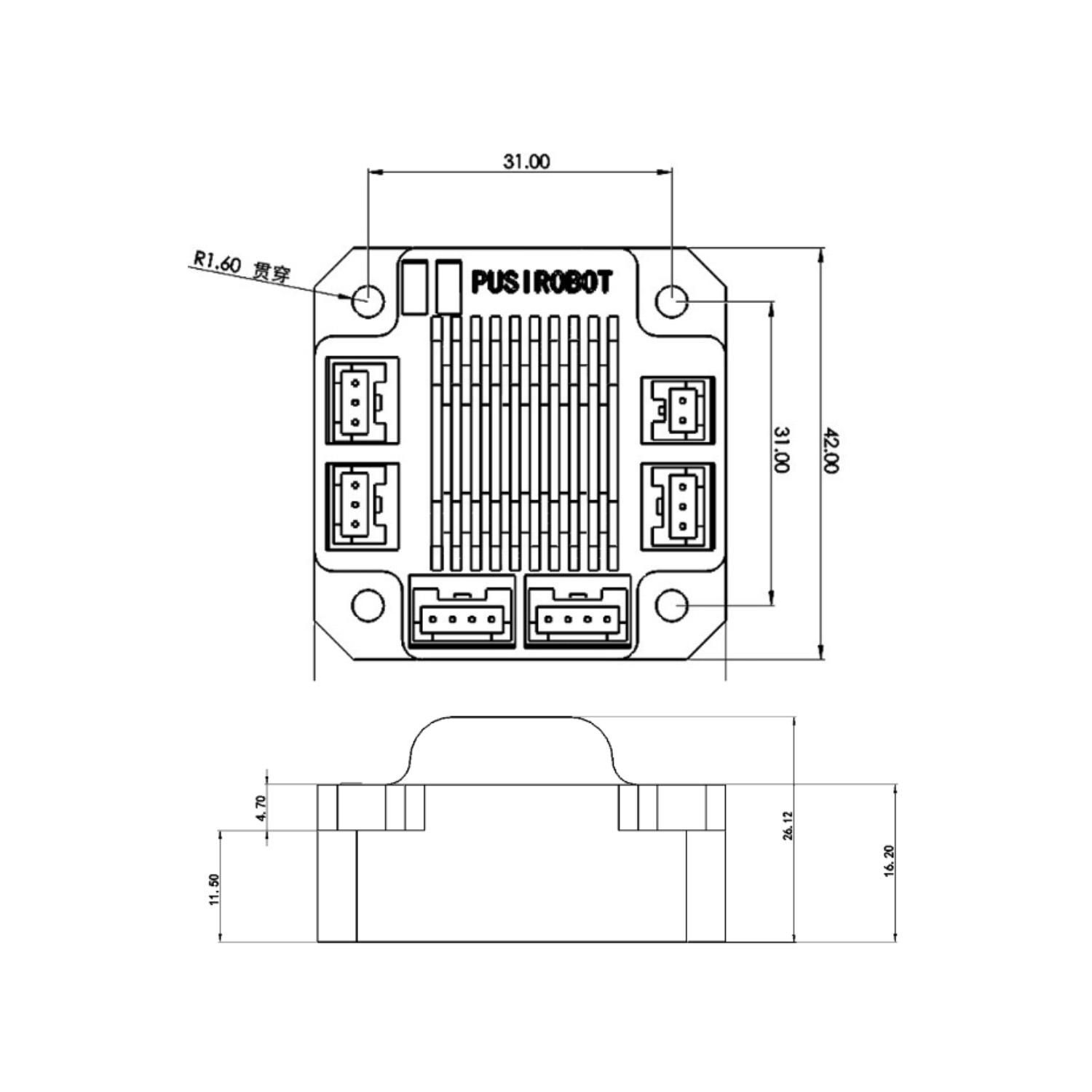

Dimension
Download
| CAD |
.DWG
|
| 3D file |
.STP
|
| The user manual | |
| Debug software |
Selection guide
Functional features
| Function |
Description
|
| S-curve acceleration and deceleration automatic control |
Support separate configuration of starting speed, stopping speed, acceleration and deceleration. Acceleration and deceleration support 8-gear control. Acceleration and deceleration simulation diagram is as follows
|
| Multi-axis motion control |
Maximum retention control precision
|
| Weight | 0.039 kg |
|---|---|
| Dimensions | 4.23 × 4.23 × 2.16 cm |
