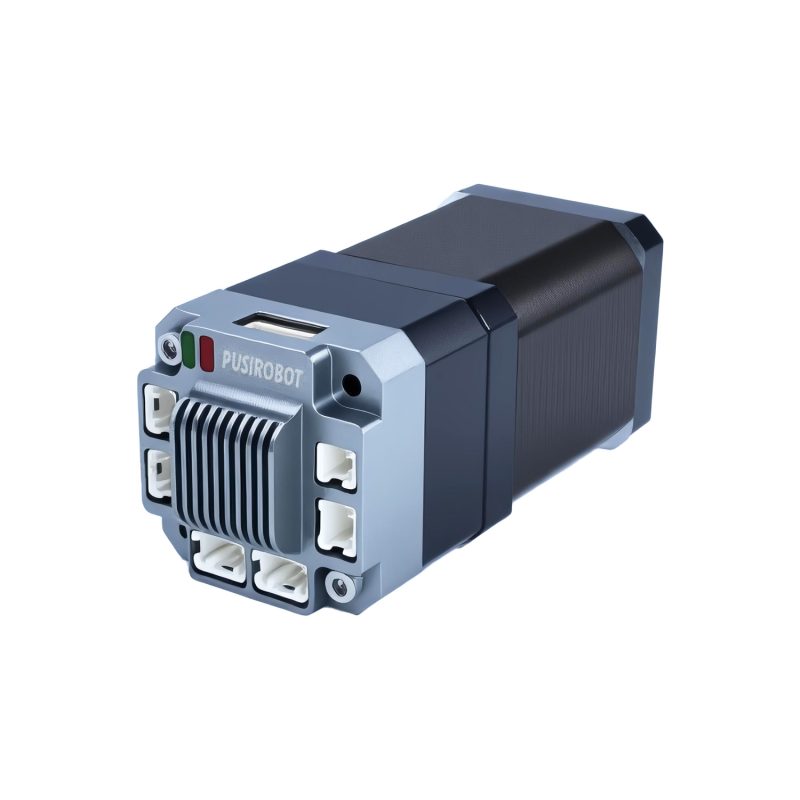

Nema17 Integrated stepper motor PMC006x3s
$74.00 – $138.00
Nema17 Integrated stepper motor PMC006x3s
Technical data
General
|
Nema17 closed-loop stepper motor series
|
|
| Host |
PC,PLC,MCU
|
| Support motor |
2-phase 4-wire 1.8°/0.9° stepper motor
|
| The development environment |
VC C# Labviwe VB Linux Python
|
| The power supply voltage |
DC 12-48V
|
| Motor Current |
DC 1.2A L=33mm |
| Microstepping |
0/2/4/8/16/32/64/128 adjustable
|
| Temperature |
-40℃~80℃
|
| Incremental resolution |
Suppport external 200-8000PPR(Default 4000)
|
| Absolute resolution |
14 bit single-turn/multi-turn absolute encoder
|
| Holding torque |
0.25N.m L=33mm
0.36N.m L=40mm 0.45N.m L=47mm 0.70N.m L=60mm |
| Durability |
Over 20,000 hours
|
The input
| General I/O |
NEMA17 Absolute Integrated Stepper Motor Series
|
| IO function |
External stop input, brake control, digital input/output, analog input, factory reset, 5V output, digital ground
|
| The input specifications |
Digital input voltage: 0-5V
Analog speed regulation input voltage: 0-3.3V External stop input voltage: 0-24V |
Control mode
|
|
Description
|
| Control mode |
Support Position/Velocity/PP/PV/SP/Analog Position/Analog velocity mode etc. motion mode
|
| Mode switching |
Specified instruction switching
|
Communication
|
Description
|
|
| Protocol |
CANopen DS301/Modbus-RTU
|
| Baud rate |
5k-1M bps continuously adjustable / 9.6K-115.2K bps adjustable
|

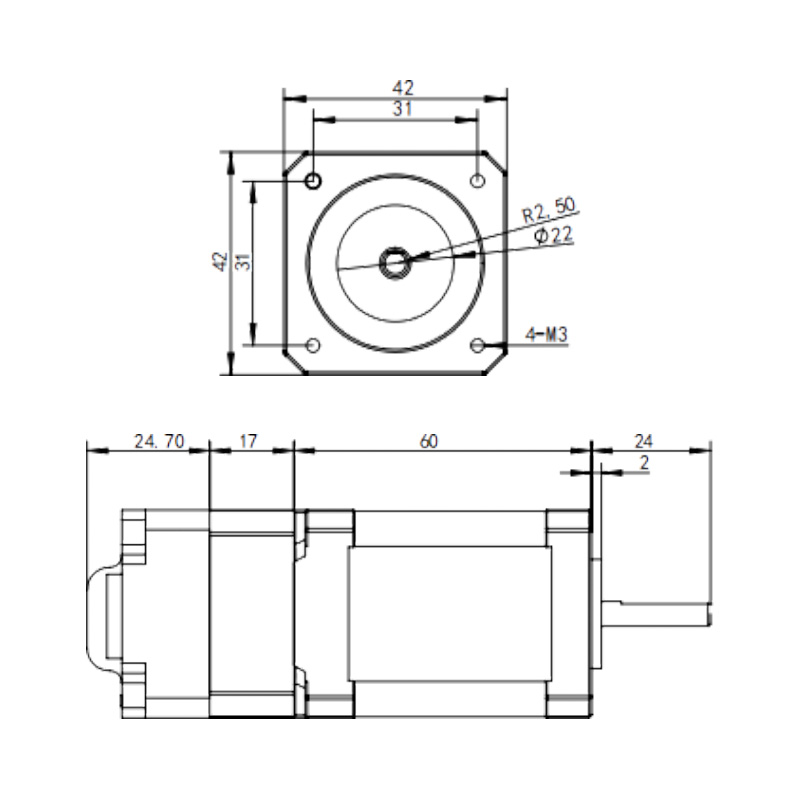

Dimension
Download
| CAD |
.DWG
|
| 3D file |
.STP(Contact customer service)
|
| The user manual | |
| Debug software | |
| Development documentation | |
| Certification |
Selection guide
Functional features
| Function |
Description
|
| S-curve acceleration and deceleration automatic control |
Support separate configuration of starting speed, stopping speed, acceleration and deceleration. Acceleration and deceleration support 8-gear control. Acceleration and deceleration simulation diagram is as follows
|
| Multi-axis motion control |
Maximum retention control precision
|
| Weight | 0.5 kg |
|---|---|
| Dimensions | 4.23 × 4.23 × 2.16 cm |
| Motor size | 42-47, 42-60 |
| Encoder type | Incremental encoder, Multi-turn absolute encoder, Single-turn absolute encoder, No encoder |
| Communication | CANopen, RS232, RS485 |
