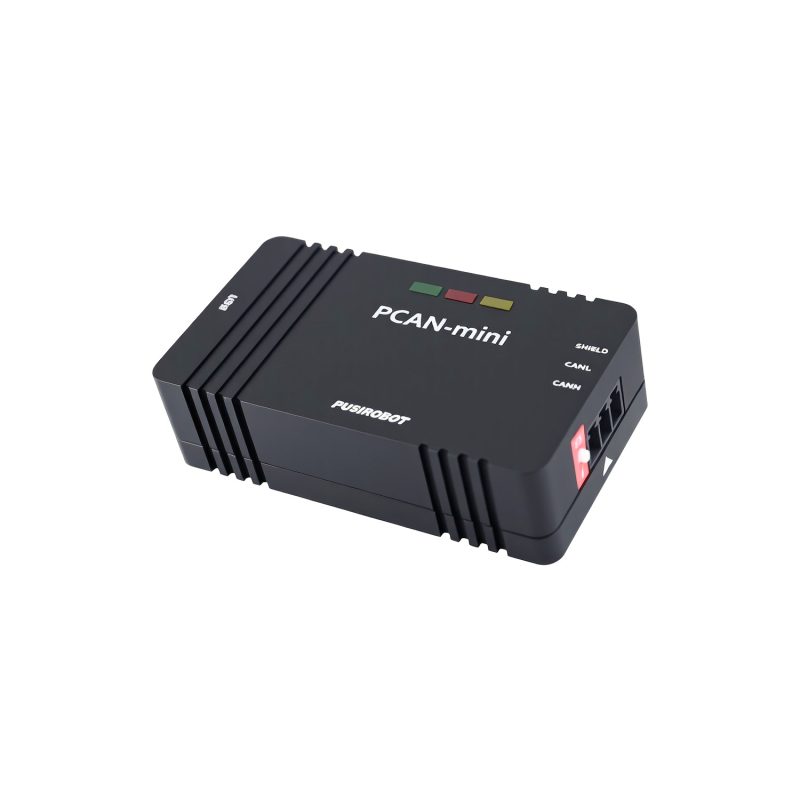

PCAN-mini USB to CAN Adapter CAN Interface Can Bus Analyzer PUSICAN
$58.00
The PCAN-Mini series is a micro USB-CAN adapter that takes less space in a small size, suitable for mobile applications. Support Windows, Linux, Raspberry Pi, etc.
A DIP switch can be selected to control the 120Ω resistance.
CAN galvanic isolation voltage 1500VDC.
PCAN-MINI
Technical data
General
|
PCAN-MINI
|
|
|
Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0
|
|
|
High-speed CAN connection (ISO 11898-2)
|
|
| Bit rates from 5 kbit/s up to 1 Mbit/s |
|
| Time stamp resolution approx. 42 µs |
|
| Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID) |
|
| Secondary development API interface, support C#, C++, WFC, Delphi, etc |
|
| A DIP switch can be selected to control the 120Ω resistance |
|
| Device drivers for Windows11/10/7 and Linux |
|
| Operating temperature -40 ~ 85 °C |
|
| CAN galvanic isolation voltage 1500VDC |
|
LED Status
| LED |
Status
|
Green |
Power supply voltage exists， solid when powered on
|
| Red |
TX signal indicator, flashing when signal is sending
|
Yellow |
RX signal indicator, flashing when signal is receiving
|
Dimension
Download
| The user manual | |
| Certificate |
| Weight | 0.5 kg |
|---|---|
| Dimensions | 4.4 × 4.4 × 3.18 cm |
