Capacitive pressure sensor controller PCS07xx





        Description

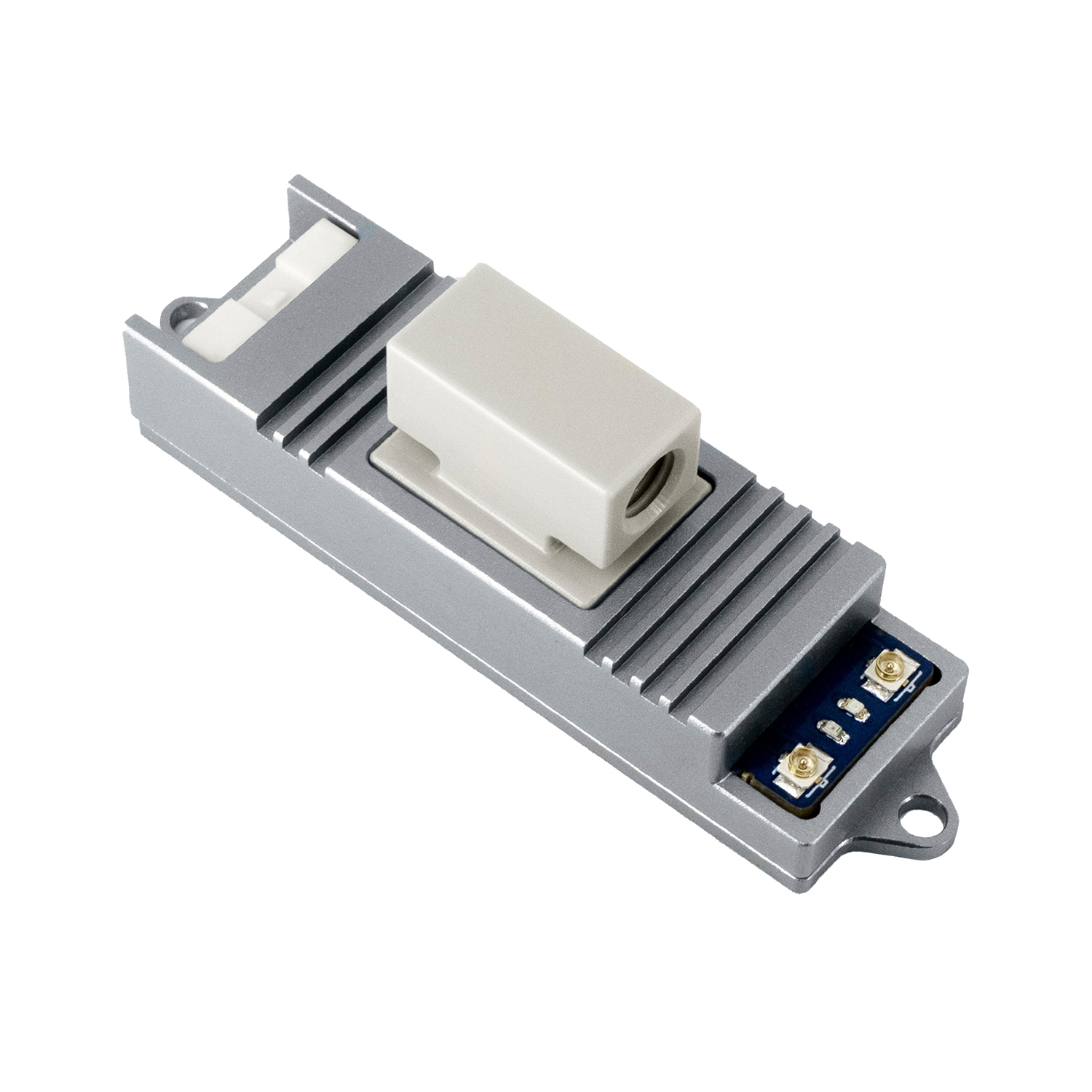

The PCS07xx is a controller that integrates capacitive sensors and pressure sensors, which can not only detect liquid triggers by programmable capacitive sensing, but also judge whether the pipeline is blocked and leaking through the change of pressure value, and the two systems can operate independently. Both capacitance and voltage values can be converted into intuitive data outputs, and triggering can be determined by status bit changes and LEDs. The PCS07xx provides a simple and fast control command set, which can be connected to the control host via CAN, in a small size, cost-effective, one model, two uses, and a simple and flexible interface. It is suitable for reagent level detection and container level detection of various medical, environmental protection and laboratory instruments.

        Technical data

        General
Description
Host
PC PLC MCU
Development environment
VC C# Labview VB Linux Python
Supply voltage
DC9-24V
Output trigger
Digital level
Capacitance detection accuracy
10fF
Pressure detection accuracy
+/-2%Fspan
Capacitance detection range
0-2.5nf
Pressure detection range
+/-10kpa(Customizable)
Response speed
Capacitive: microseconds
Pressure: 2ms
Detection channels
Capacitive:2
Pressure:1
Temperature range
-40℃~80℃
Durability
Over 20,000 hours

       Interface definition
Interface
Description
J1
VCC: Dc power supply,9-24V
GND:Ground
CANH:CAN Bus high line
CANL:CAN Bus low line
TR:5V Trigger signal output, can be configured high and low level trigger
J2
Capacitance channel 2 interface
J3
Capacitance channel 1 interface
J4
Pressure channel interface

        Communication
Description
Protocol
CANopen DS301/DS402
Baud rate
5K-1Mbps

        Dimension

       Typical application pattern wiring diagram
Model
Description
Single-end mode 1
This mode selects the detection channel 1 work

Single-end mode 2
This mode selects the detection channel 2 work

Single-end mode 3
This mode improves detection accuracy, suitable for reagent bottles or small volumes of liquid to be measured
The differential mode
This mode is non-contact measurement mode when the coupling capacitance of the equipment frame is very large
Sliding window mode
Sliding Window Mode, which is suitable for cases where capacitance values drift slowly or where the capacitance to be measured is very small, enables stable detection of capacitance trips down to 500fF, which is used superimposed on the four modes mentioned above

        Download
CAD
.DWG
3D file
.STP
The user manual
Debug software
Development of the document
Certificate
CE

            Selection Guide

       Functional features
Function
Description
Capacitance calibration
Digital signal processing technology is used to control the measurement loop, which can improve the system reference capacitance detection significantly
Optimize the algorithm to ensure the linearity of measurement
Visual debugging interface
