Regenaration Clamp RC010





       Main characteristics
when the motor is decelerating under load, the kinetic energy of that load is transferred back through the drive electronics to the power supply connection. This increase in voltage can trip the overvoltage protection of a switching power supply and the excess energy will be transmitted back to the driver, causing damage to the driver or power supply. The RC010 regeneration clamp is designed to solve this problem by absorbing the regenerated energy in the capacitor and shunting excess energy through the power resistor.

        Technical data

       General
RC010 series
Supply Voltage
DC 12-80V
Input Voltage
12-80V
Output Voltage

12-48V

Ambient Temperature
0-55℃
Maximum Interface Current
0-3A
Absorbed Power
10W
Durability
Over 20,000 hours

        The interface definition
RC010 series
J1
GND:DC power input negative pole
VDD:DC power input positive pole
J2
VDD:Output positive pole
GND:Output negative pole

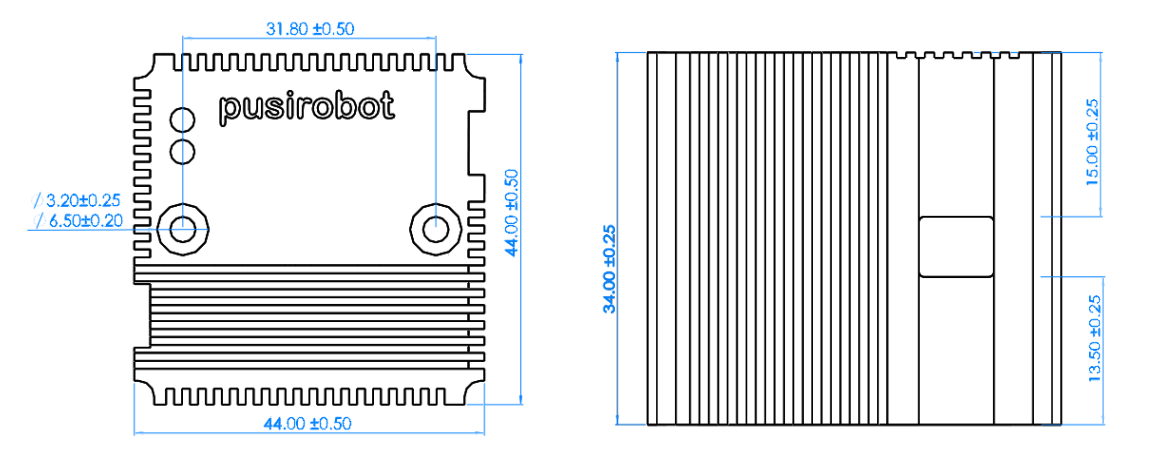

        Demension

       LED Status
LED
Status

Green

Power supply voltage exists, solid when powered on
Red
It is off when working normally, solid when starting protection

        Download
The user manual
Certificate
CE

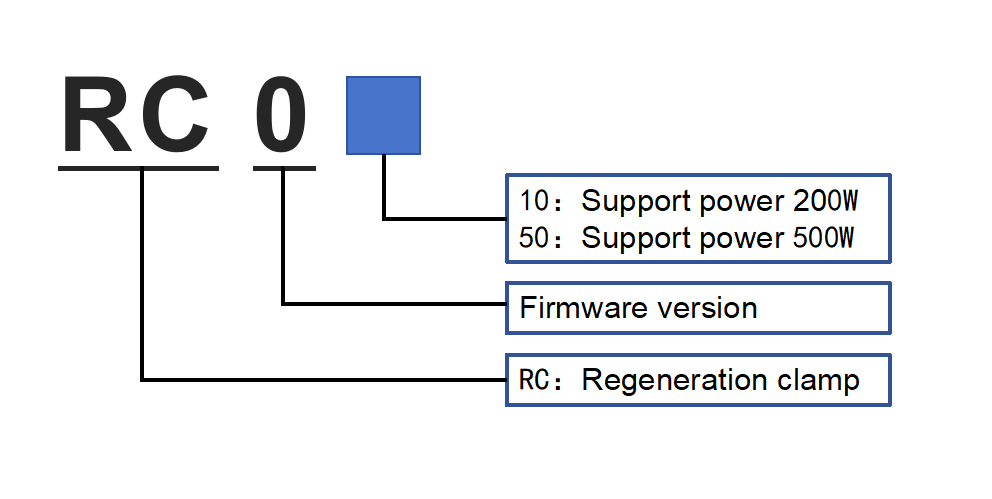

        Selection guide

       Functional features
Function
Description
Power protection
Overvoltage and reverse voltage protection are provided at the inputs. Under overvoltage conditions, the internal circuitry of the module will prevent a higher regenerative voltage from being fed into the input supply, as shown below
